Vis alle Veggkontakter
/
Vis alle Veggkontakt

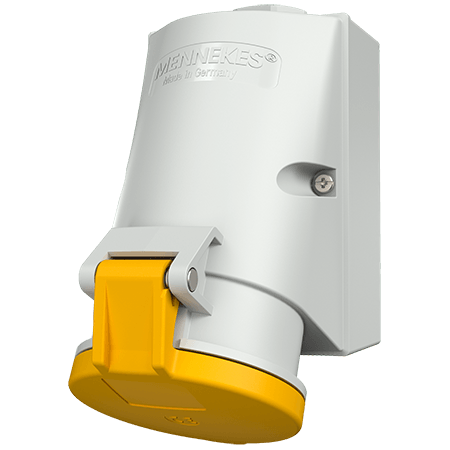

Wall mounted receptacle 1420
Ampere
16 A
32 A
Poler
3 p
4 p
5 p
Volt
110 V
230 V
400 V
Klokkeposisjon
4 h
6 h
9 h
screw terminals
internal fixing
one cable entry at top, two blind cable entries (can be cut out) at bottom
enclosure base can be turned 180°
receptacles are designed for adding an auxiliary contact switch
Delnr.
1420
EAN
4015394010517
Std. Pakke.
10 Antall.
Legg i handlekurven
Tekniske spesifikasjoner
Wall mounted receptacle 1420
Ampere
32 A
Poler
3 p
Volt
110 V
Klokkeposisjon
4 h
Hertz
50-60 Hz
Tilkoblingsmåte
skrukontakt
Kontakt
standard
Kapslingsgrad
IP44
Vekt
346 g
Datablad og nedlastinger
Wall mounted receptacle 1420
Produktdatablad
Wall mounted receptacle 1420
PDF, 133 KB
CAD-data STP
Wall mounted receptacle 1420
ZIP, 1 MB
CAD-data 3D-DWG
Wall mounted receptacle 1420
ZIP, 3 MB
Monteringsveiledning/bruksanvisning
Wall mounted receptacle 1420
PDF, 128 KB
Måltegning stående
Wall mounted receptacle 1420
PNG, 97 KB
Måltegning liggende
Wall mounted receptacle 1420
PNG, 98 KB
Retningslinjer
Wall mounted receptacle 1420
REACh
RoHS
